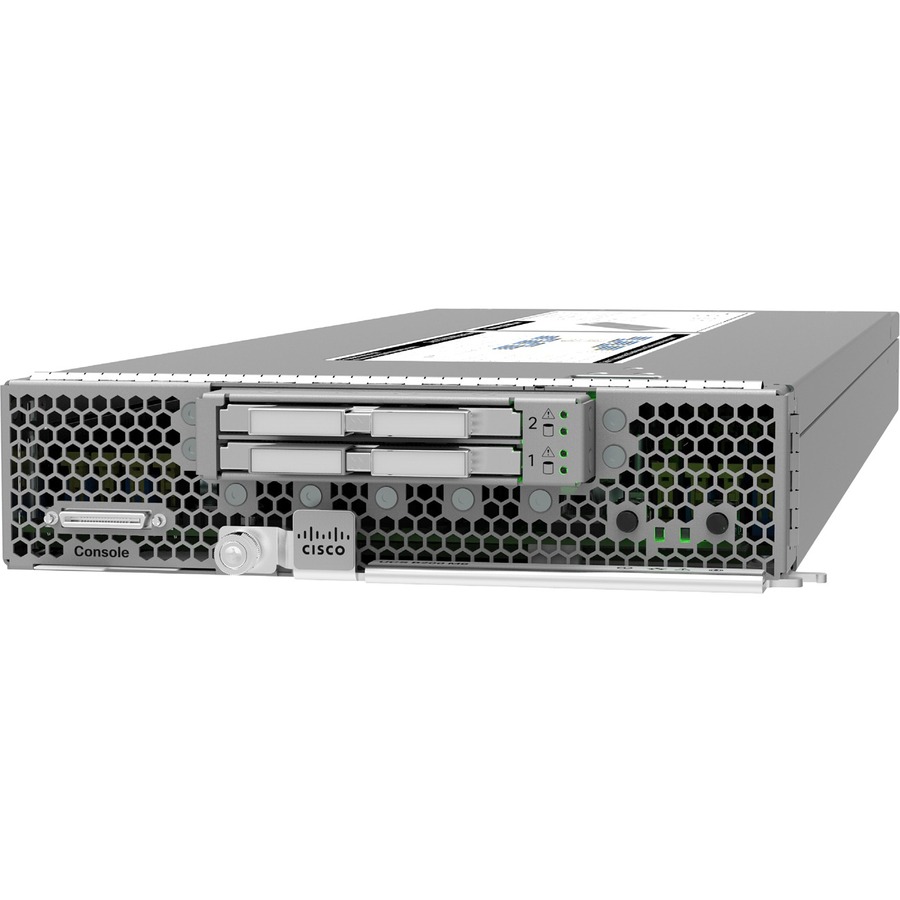

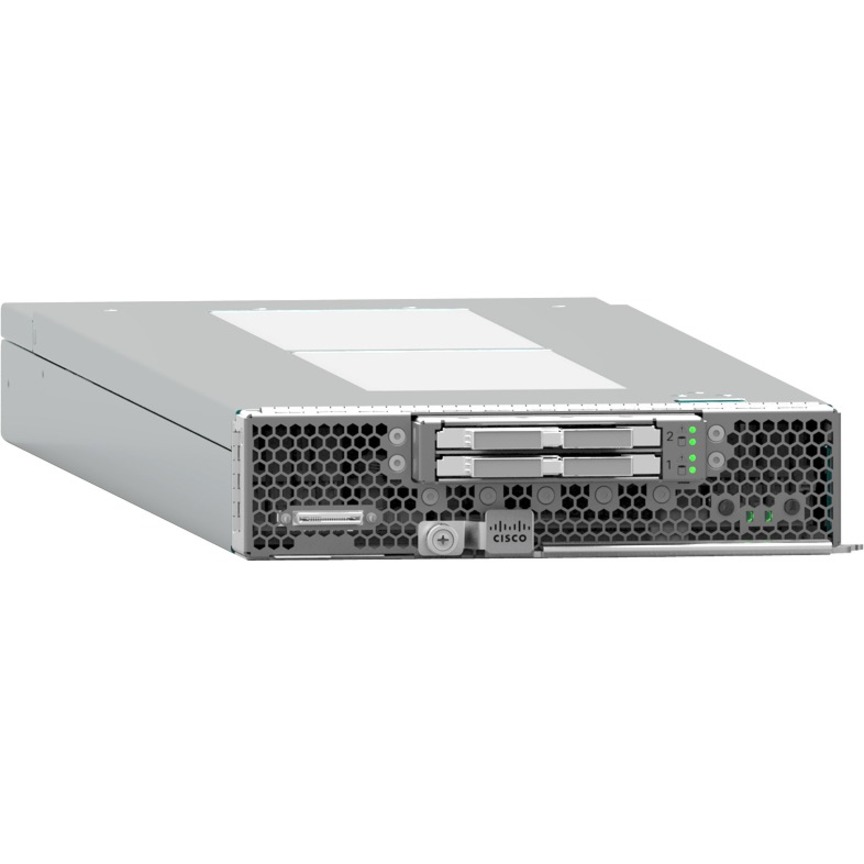

Cisco Barebone System – Blade – 2 x Processor Support

Delivering performance, versatility and density without compromise, the Cisco UCS B200 M6 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.

The enterprise-class Cisco UCS B200 M6 blade server extends the capabilities of Cisco’s Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M6 harnesses the power of the latest 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) with:

• Up to 4 TB of RAM per CPU (using 16 x 256 GB DRAMs) or up to 6 TB per CPU (using 8 x 256 GB DRAMs and 8 x 512 GB Intel® Optane™ Persistent Memory Modules (PMEMs))
• Two solid-state drives (SSDs), or
• Two PCIE NVMe drives, or
• Mini storage carrier with M.2 SATA drives
• Up to 80 Gbps throughput connectivity.

• Perform computational tasks effectively accrediting the Xeon Bronze processor
• DDR4 SDRAM compatible slot – Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
• Optimize workflows by sharing the resources of the workstation using Ethernet connectivity
• 12Gb/s SAS interface for high speed and reliability
